Permanent Magnetic Coupling is an equipment of transmitting torque by air gap, being assembled in mate with motor, pump and other rotating facilities to realize no-contact synchronous connection with a load. It brings benefits of :
- ,Extending motor life
- ,Removing vibration and wear
- ,Promoting utilization of energy efficiency
- ,Saving equipment damage of overload
We offer series magnetic couplings of Torque-Limiting Permanent Magnet Coupling, Permanent Magnet Synchronous Coupling ( Flat Synchronous Coupling and Coaxial Synchronous Coupling ), and welcome customized permanent magnet coupling and parts out of our standard model list.
Torque-Limiting Permanent Magnet Coupling
Motor Power (kW) |
Loaded Speed (1500rpm) |
Loaded Speed (1000rpm) |
Loaded Speed (750rpm) |
Installment Diagram |
5.5 | CMCL-320 | CMCL-320 | CMCL-350 |
CMCL-XXX is the product model. L=A+B+C There is a suffix ^Z ̄ if brake is needed. |
7.5 | CMCL-350 | CMCL-350 | ||
11 | CMCL-350 | CMCL-350 | CMCL-360 | |
15 | CMCL-360 | CMCL-390 | ||
18.5 | CMCL-360 | CMCL-390 | CMCL-410 | |
22 | CMCL-410 | CMCL-430 | ||
30 | CMCL-390 | CMCL-430 | CMCL-430 | |
37 | CMCL-410 | CMCL-430 | CMCL-500 | |
45 | CMCL-430 | CMCL-500 | CMCL-500 | |
55 | CMCL-500 | CMCL-540 | ||
75 | CMCL-500 | CMCL-540 | CMCL-570 | |
90 | ||||
110 | CMCL-540 | CMCL-570 | CMCL-610 | |
132 | CMCL-610 | CMCL-660 | ||
160 | CMCL-570 | CMCL-660 | CMCL-680 | |
185 | CMCL-720 | |||
200 | CMCL-610 | CMCL-680 | CMCL-720 | |
220 | CMCL-720 | CMCL-750 | ||
250 | CMCL-660 | CMCL-720 | CMCL-780 | |
280 | CMCL-750 | CMCL-830 | ||
315 | CMCL-680 | CMCL-780 | CMCL-850 | |
355 | CMCL-720 | CMCL-830 | CMCL-870 | |
400 | CMCL-850 | CMCL-880 | ||
450 | CMCL-750 | CMCL-870 | CMCL-890 | |
500 | CMCL-780 | CMCL-880 | CMCL-900 | |
560 | CMCL-830 | CMCL-890 | CMCL-900 | |
630 | CMCL-850 | CMCL-900 | CMCL-930 | |
710 | CMCL-870 | CMCL-900 | CMCL-960 | |
800 | CMCL-880 | CMCL-960 | CMCL-990 | |
900 | CMCL-890 | CMCL-990 | CMCL-1050 | |
1000 | CMCL-900 | CMCL-1050 | CMCL-1100 |

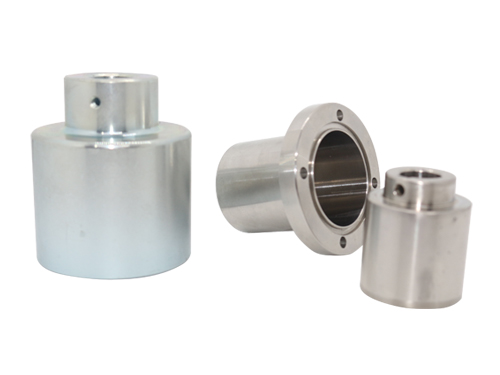

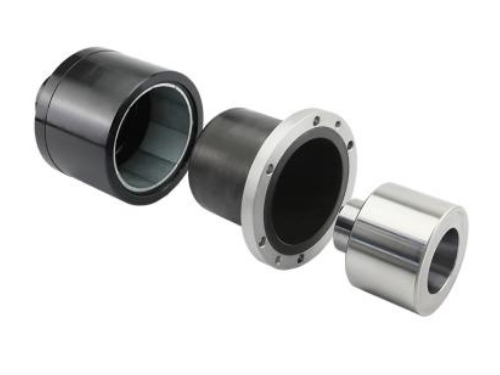

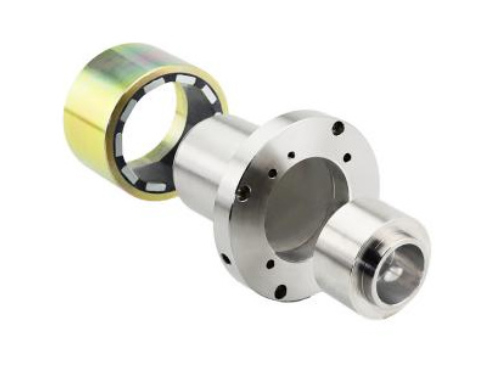

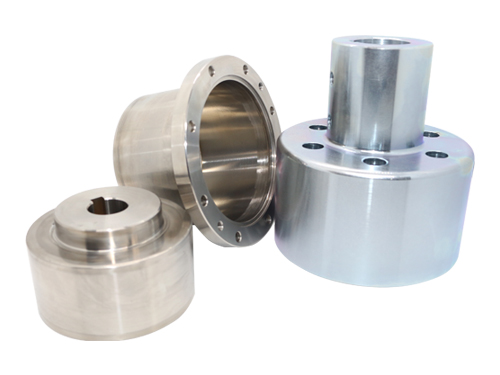

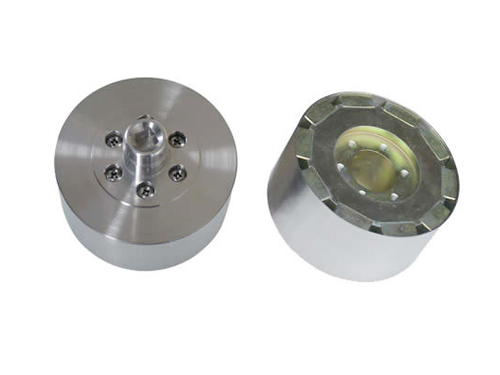

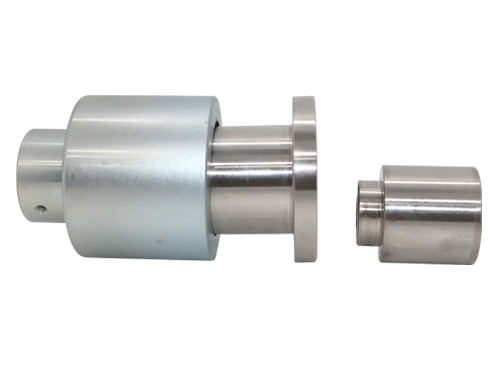

Permanent Magnet Synchronous Coupling
Products Models:

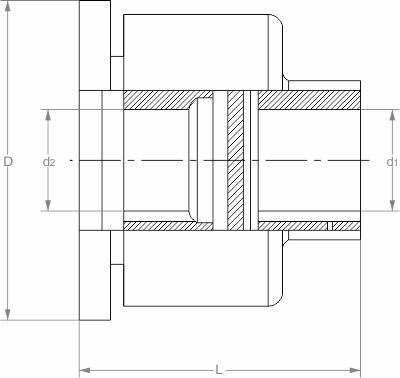

Model No. | Torque ( Nm ) | d1 ( mm ) | d2 ( mm ) | L ( mm ) | D ( mm ) |
CMCS-10 | 10 | 14 | 12 | 75 | 70 |
CMCS-16 | 16 | 16 | 13 | 80 | 75 |
CMCS-25 | 25 | 20 | 17 | 90 | 80 |
CMCS-40 | 40 | 24 | 20 | 95 | 90 |
CMCS-50 | 50 | 30 | 22 | 100 | 95 |
CMCS-100 | 100 | 32 | 24 | 110 | 110 |
CMCS-150 | 150 | 38 | 25 | 110 | 110 |
CMCS-200 | 200 | 40 | 28 | 140 | 120 |
CMCS-250 | 250 | 48 | 35 | 140 | 120 |
CMCS-300 | 300 | 55 | 40 | 150 | 125 |
CMCS-350 | 350 | 60 | 42 | 170 | 125 |
CMCS-400 | 400 | 65 | 48 | 190 | 150 |
CMCS-450 | 450 | 75 | 50 | 190 | 150 |
CMCS-500 | 500 | 80 | 60 | 210 | 170 |
Please provide motor and loading equipment data such as: motor power, rotating speed, installment dimension, working environment temperature for option on model.
